2MP LVDS Wide Range Of Applications Automotive ADAS Front Collision Warning FCW

Guangzhou Candid Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2MP LVDS Wide Range Of Applications Automotive ADAS Front Collision Warning FCW

  • 1
  • 2
  • 3

Brand Name : Customized

MOQ : 300

Price : Negotiatable

Payment Terms : L/C,T/T

Supply Ability : 100000PCS/Month

Resolution : 1080P

Video input : LVDS

Output voltage : 12V

Frame rate : 30fps

Cold start time : ≤6s

Static current : <0.4MA

Lens  : 4G

Operating voltage  : 9V--16V

Contact Now

2MP LVDS Wide Range Of Applications Automotive ADAS Front Collision Warning FCW

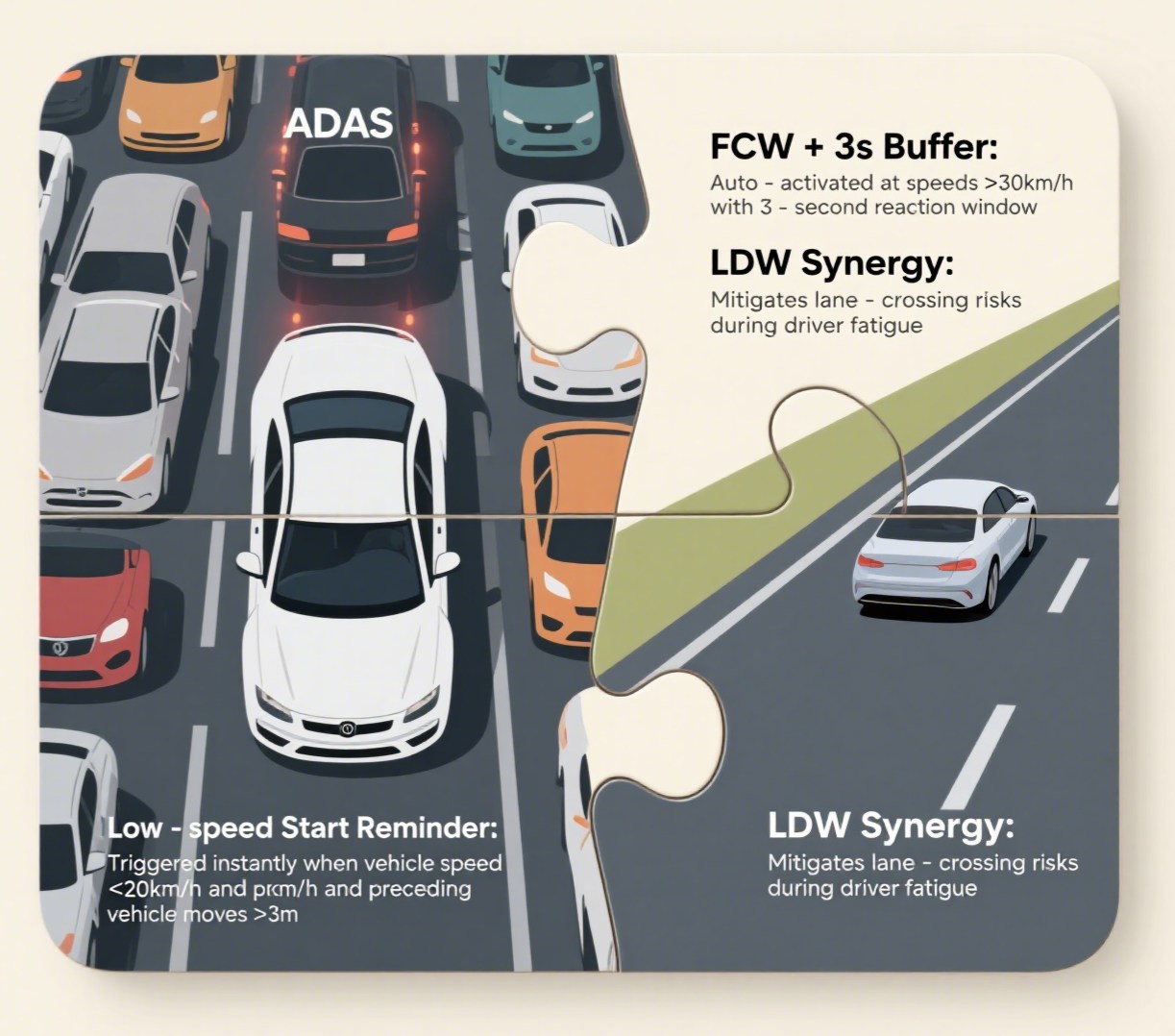

After a logistics company introduced the system, fatigue driving accidents decreased by 53% month-on-month - this is due to the precise attack on real transportation scenarios:


Traffic jam scenario: When the vehicle speed is less than 20km/h and the front vehicle moves more than 3 meters, the start reminder is immediately triggered to reduce rear-end collisions and honking disputes;


High-speed scenario: FCW collision warning is automatically activated when the speed is greater than 30km/h, and the 3-second buffer time is used to gain a golden reaction window for the driver. Combined with lane departure alarm, it effectively curbs the risk of fatigue crossing of freight drivers.

2MP LVDS Wide Range Of Applications Automotive ADAS Front Collision Warning FCW


Product Features

1.Lane Departure Warning

2MP LVDS Wide Range Of Applications Automotive ADAS Front Collision Warning FCW


2.Front Collision Warning

2MP LVDS Wide Range Of Applications Automotive ADAS Front Collision Warning FCW


Minimalist management is another trump card:
1.Zero learning cost: built-in self-calibration algorithm, automatically identifies road parameters after installation
2.Flexible control: open safety threshold customization (such as school buses tightened to 2.5 meters of safety distance)
3.Multi-terminal collaboration: SDK outputs alarm data to the fleet management platform, and violations are automatically archived

2MP LVDS Wide Range Of Applications Automotive ADAS Front Collision Warning FCW


SPECIFICATIONS of ADAS

Hardware Parameters

Camera sensor Sony IMX 307
HFOV 45°
VFOV 35°
Frame rate 30fps
Lens 4G
Resolution 1080P
Operating voltage 9V--16V
Operating current <1A
Static current <0.4MA
Video input LVDS
Video output NA
Output voltage 12V
Cold start time ≤6s
Operating temperature -40℃—85℃
Storage temperature -40℃—95℃


Software specifications

Function Point Function Function Description
AI Function Reminder for the vehicle ahead too close Speed > 30Km/h, 1.6 seconds in advance
Reminder for the vehicle ahead starting Speed < 20Km/h, the vehicle ahead > 3 meters away Alarm
Reminder for collision avoidance
(FCW)
At high speed, 3 sec in advance
At low speed, 1.5 sec in advance
Driving on the lane Detects whether the vehicle deviates from the lane line
Calibration Self-calibration Fast calibration, supports repeated calibration
Factory calibration Meets the requirements of the original factory


The hardware layer directly hits the pain points of the fleet: static current <0.4mA eliminates battery loss, and 12V universal voltage is suitable for diesel/electric vehicles. It now covers more than 2,000 online ride-hailing vehicles and school buses across the country, reducing the safety cost per kilometer to 0.2 yuan!


For more information innovative features and functions of Candid's Automotive Infrared ADAS, please visit [https://www.candidelectronics.com].


Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: litmea.mo@candidelectronics.com for more details.
